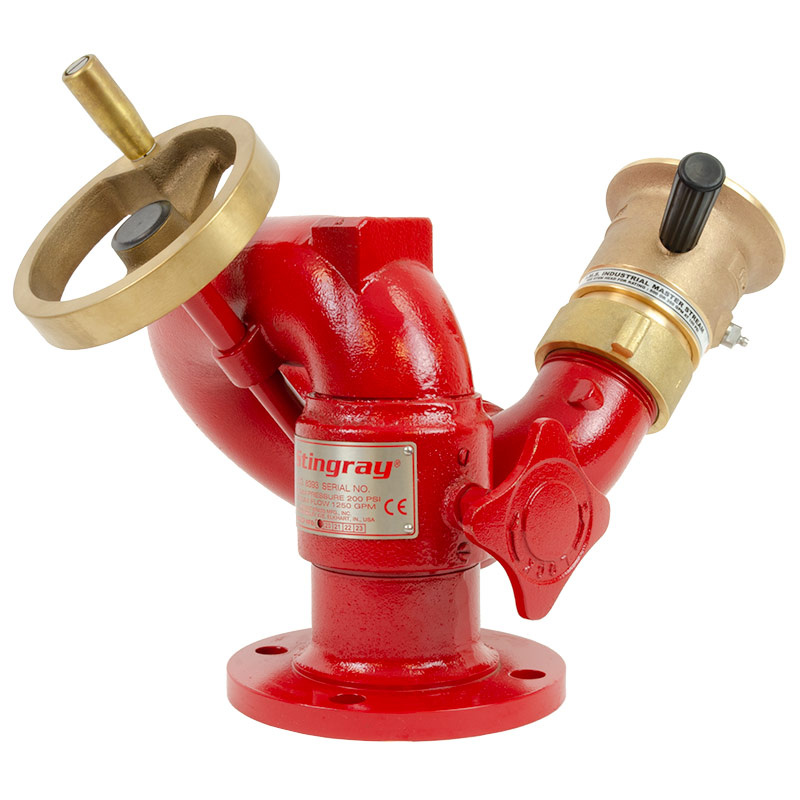

Elkhart Stingray Monitor with and without Nozzle 8393

Description PDF Stingray monitor       Drawing Stingray-Dimensional 2023-EB-Full-LineCatalog-INDUSTRIAL_V2 The Elkhart Brass Stingray® manual monitor low profile design enables use in space constraint applications. The Stingray monitor is FM Approved to the current edition of the FM1421 standard and suitable for corrosive and non-corrosive environment applications Key Features 1250 gpm (4750 LPM) maximum flow rate 200 psi (14 BAR) maximum operating pressure -60° to 90° (150°) vertical travel range 360° continuous horizontal travel rang 2 1/2″ outlet Full 3″ unobstructed waterway Inlet Available with 3″150#flg and 4″150#flg Handwheel control for vertical discharge travel range Available with built-in ball valve, Model 8393-IV Rugged brass construction for use in corrosive environments and seawater applications
